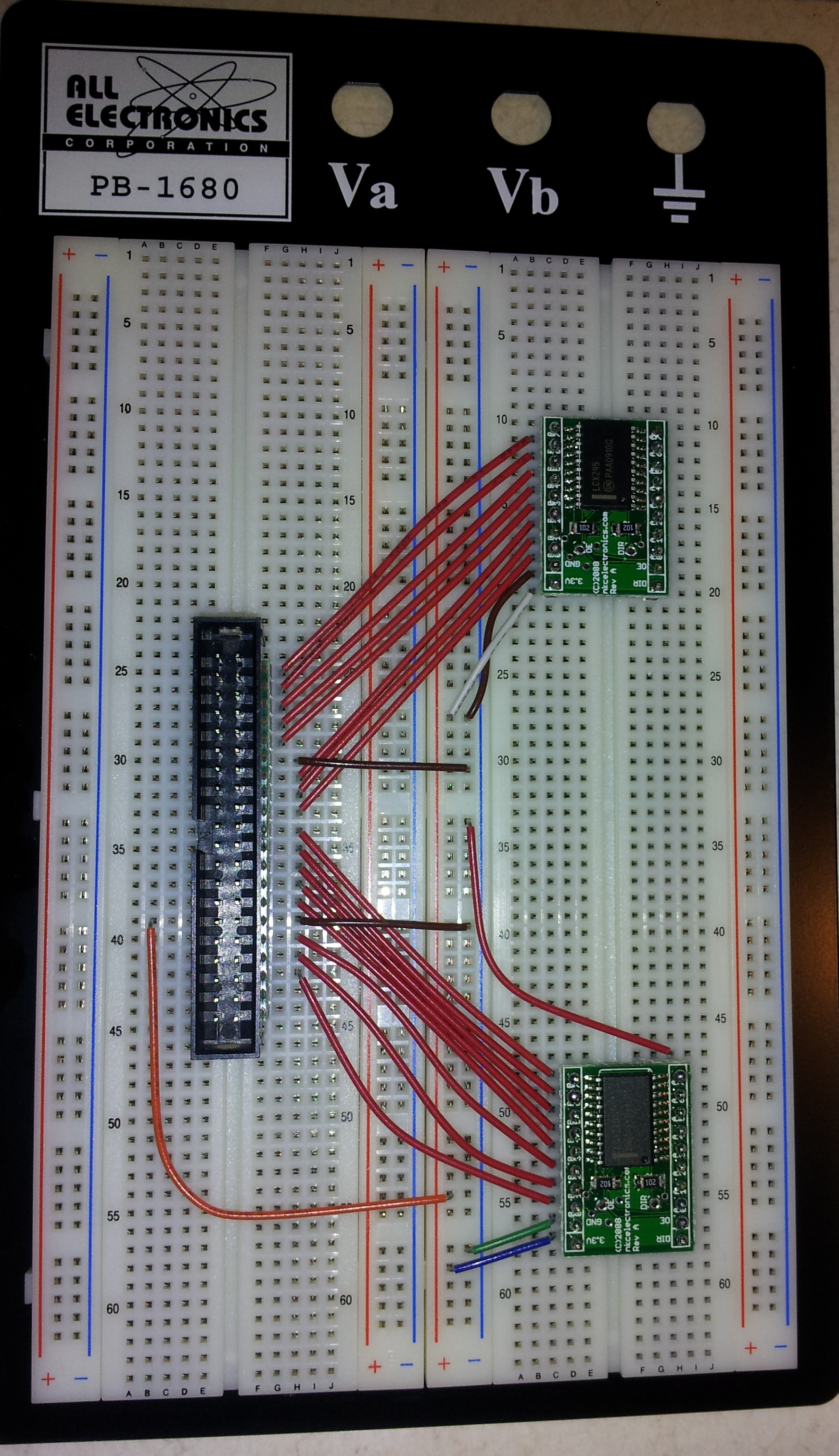

keithI put this together last night. It takes the amiga 5v video signals in on the right hand side and then outputs 3.3v to IDC40-pin connector that connects to the FPGA board.
Once I build my header cables, they will plug directly into the solderless board on the right hand side.
In case anyone is wondering, none of the standard pre-stripped jumper lengths fit directly across the board, so I moved the 245’s further away to accommodate the lengths that worked.
